Spezifikationen
Please refer to the specifications below to help you select the right solution for your needs.
| MODEL |
2300 W SERIES |
3400 W SERIES |
4500 W SERIES |
| OPERATING MODE |
ELECTRICAL |
ELECTRICAL |
ELECTRICAL |

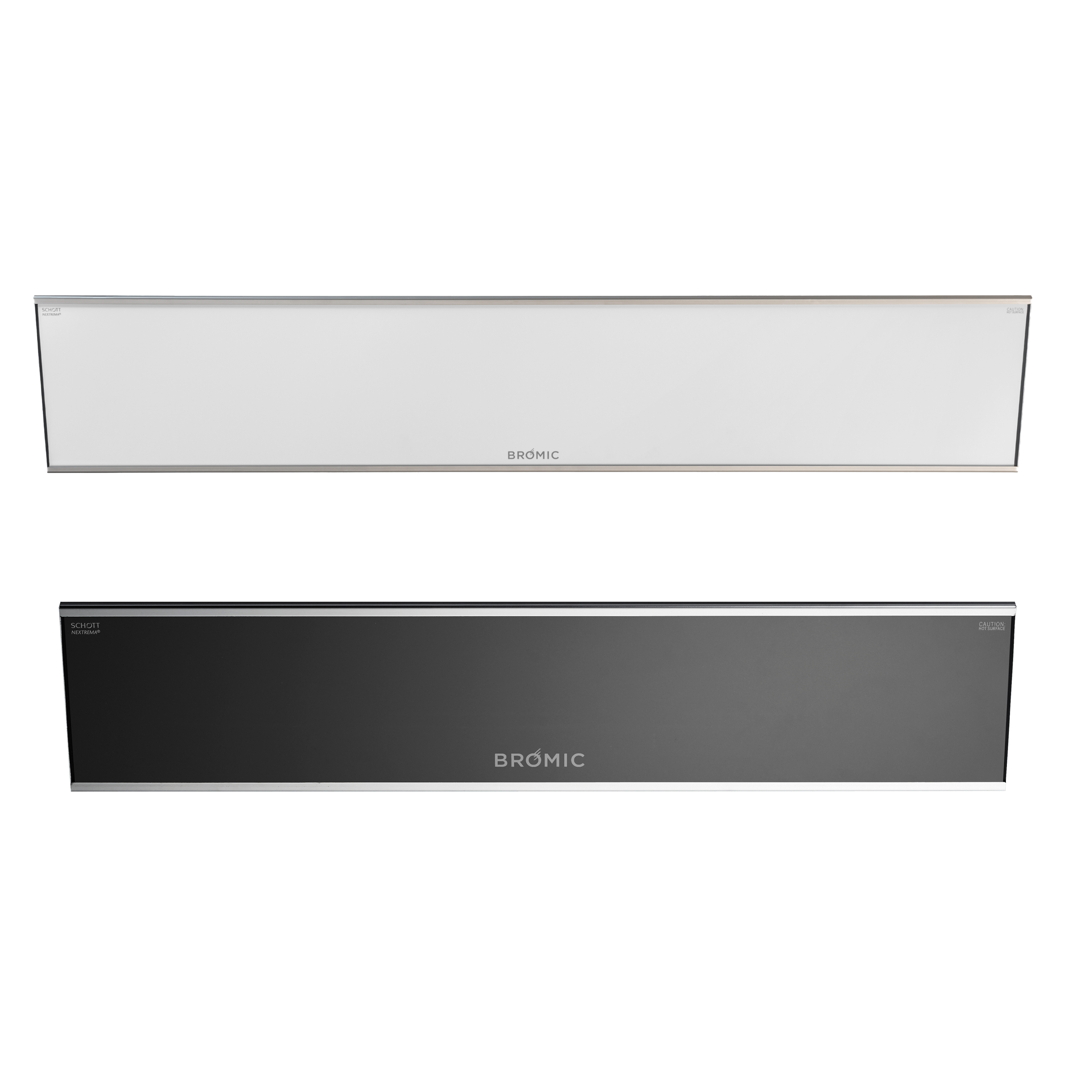

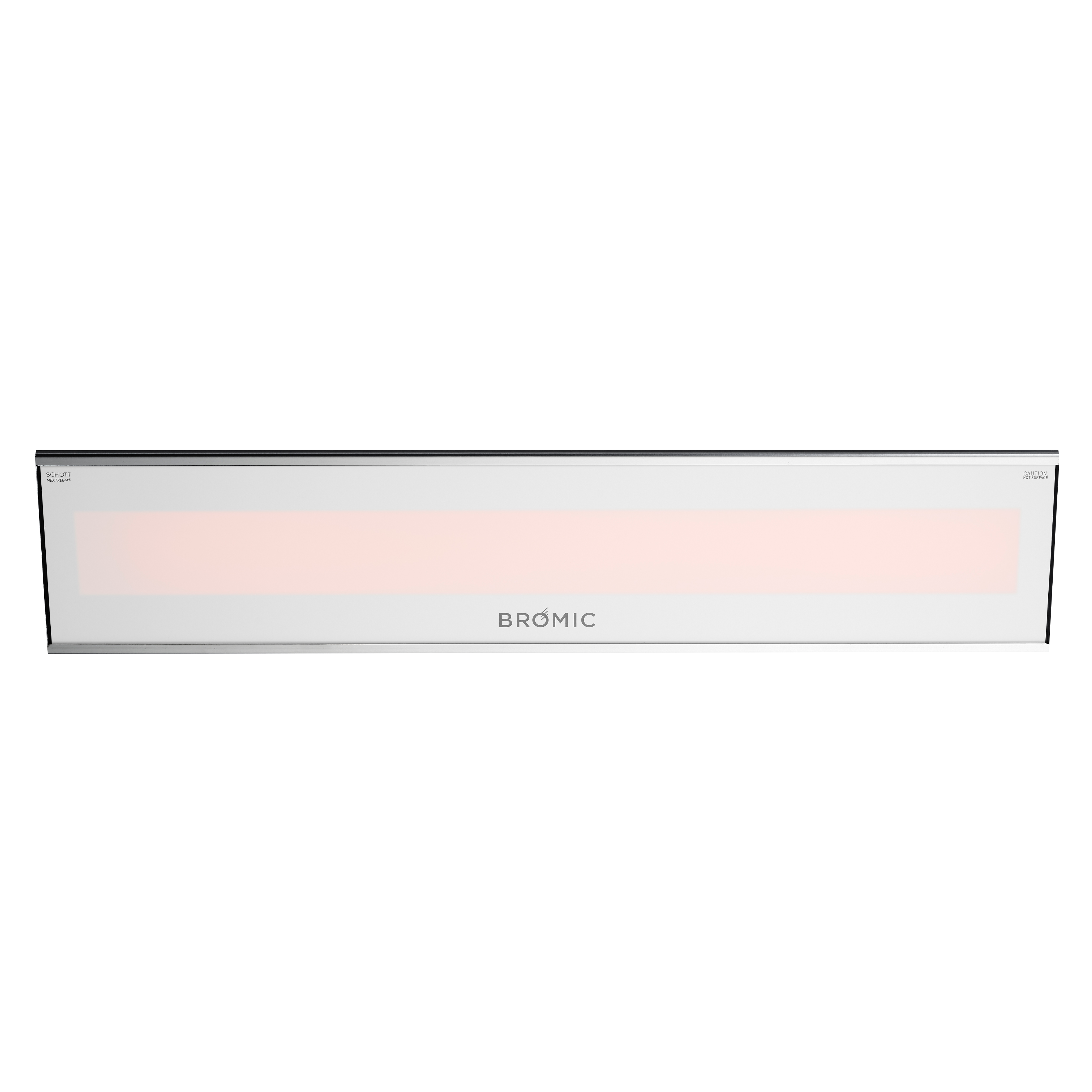

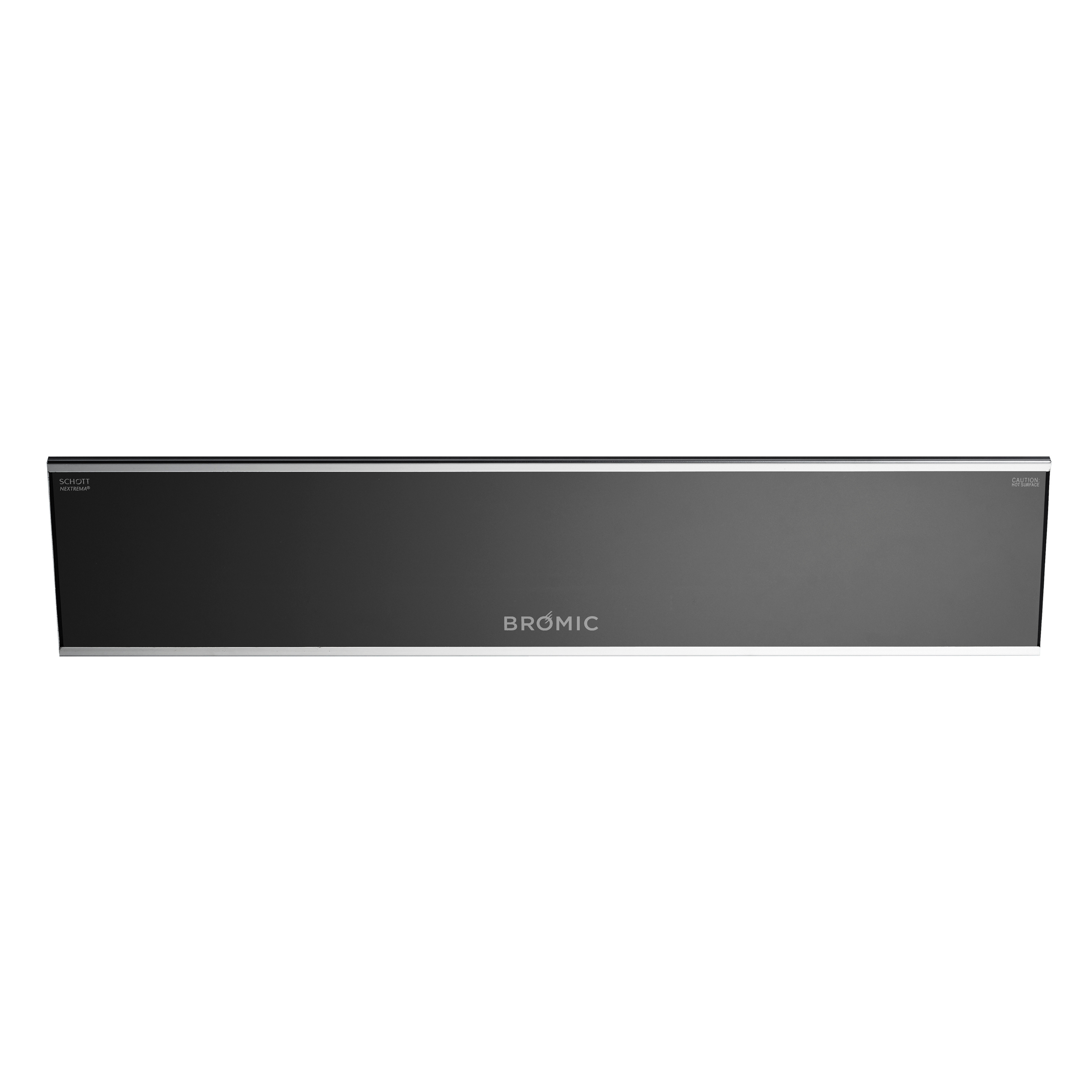

| COLOR |
BLACK | WHITE |
BLACK | WHITE |
BLACK | WHITE |
| WEIGHT |
8kg |
10kg |
15kg |
| HEATING AREA |
6 m2 |
10 m2 |
12 m2 |
| RATED CURRENT |
220-240V/9.6A |
220-240V/14.2A |
220-240V/18.8A |
| MINIMUM GROUND CLEARANCE |
Wall 1.8 m
Ceiling 2.4 m |
Wall 1.8 m
Ceiling 2.4 m |
Wall 1.8 m
Ceiling 2.4 m |
| APPROVAL CERTIFICATION |
CE-Intertek 2305A0683SHA-V2 |
| GUARANTEE |
3 YEAR SPARE PARTS |
| CONTROL OPTIONS |
2300 W SERIES |
3400 W SERIES |
4500 W SERIES |

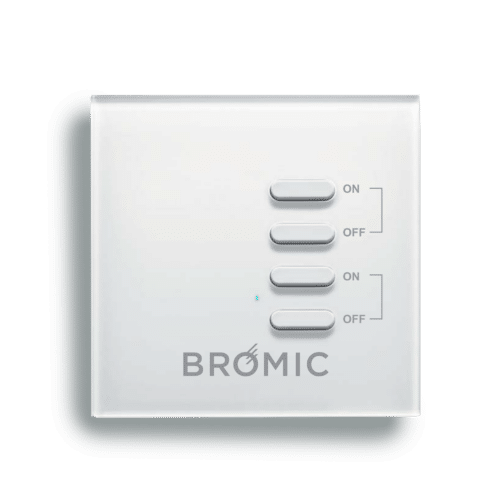

| AFFINITY ON/OFF |
✓ |
✓ |
✓ |

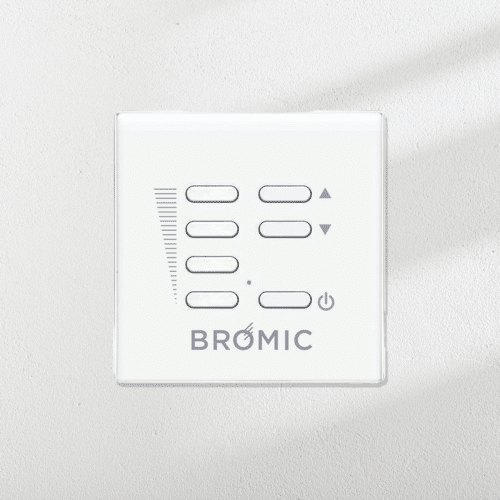

| AFFINITY DIMMER |
✓ |
✓ |
✓ |

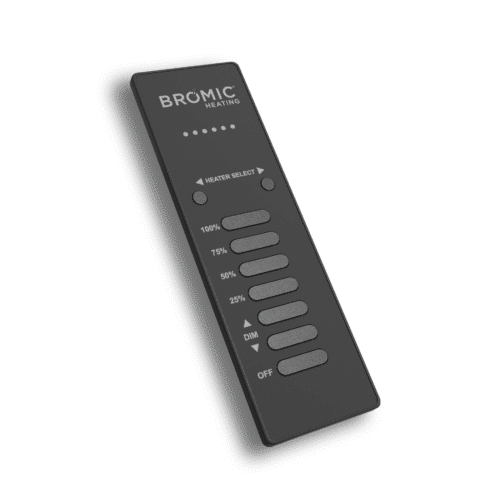

*Independent control of up to six heating zones with an unlimited number of heaters per zone via a single remote control. Dimmer control required. The control works within a range of 30 m.
*Please visit Bromic Controls for more information.
Downloads
Installation
Installation must be performed by a licensed and authorized technician in accordance with local building codes. Please note our clearance requirements and consult the installation manual for further details.
Downloads
BIM- und CAD-Dateien
Um BIM- und CAD-Dateien herunterzuladen, füllen Sie das folgende Formular aus:
Häufig gestellte Fragen
Sind die Platinum Electric-Heizstrahler mit einer Steuerung ausgestattet?
No, the controls can be purchased as additional accessories.
Kann ich den Platinum Electric-Heizstrahler selbst installieren?
No, the heater must be installed by a licensed technician.
Was ist Infrarot-Strahlungswärme?
Infrared radiant heat works like solar heat. Instead of warming the air around you, it warms people and objects. This makes radiant heat more effective as an outdoor heating source because it’s less susceptible to wind.
Kann der Platinum-Electric-Heizstrahler nass werden?
Although our Platinum Electric heaters are made from high-quality 304 stainless steel and designed to last, Bromic recommends mounting them under a cover and avoiding direct exposure to rain, snow, and fog to ensure they retain their aesthetic appearance.
Welche Befestigungsmöglichkeiten gibt es?

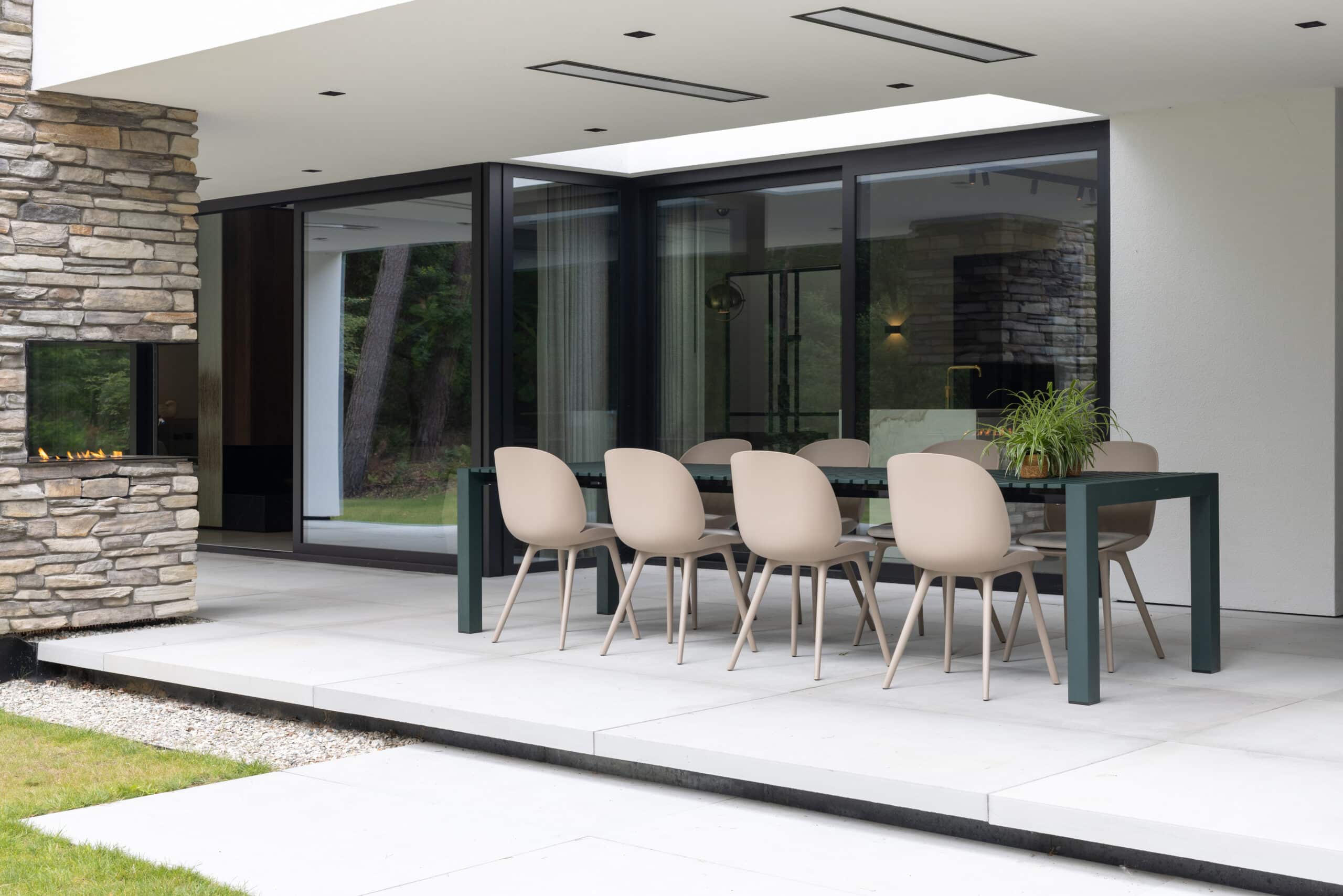

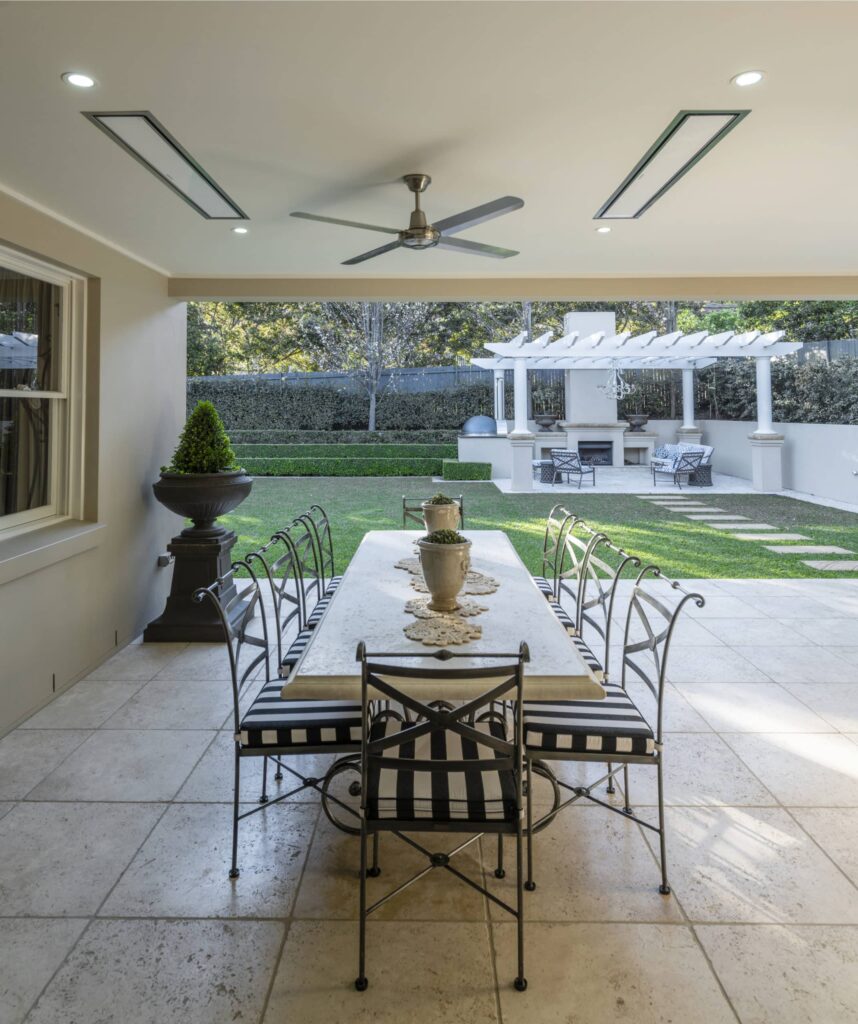

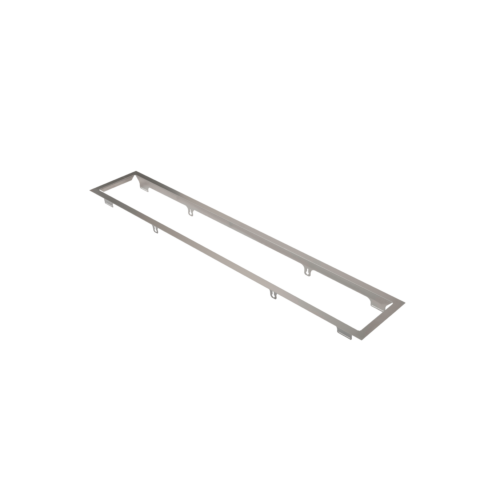

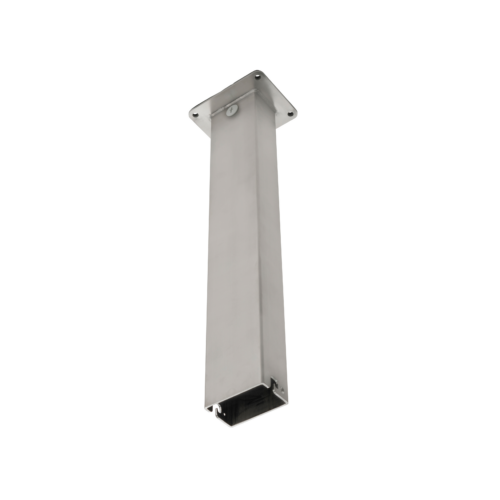

The heaters can be mounted on the wall, using a mounting pole, or recessed into the ceiling. Each heater comes with a 20 cm stainless steel mounting pole. Installation kits and longer poles for high ceilings can be ordered separately. Please refer to our instruction manual or contact our friendly design team to find out which installation and height is right for you.
