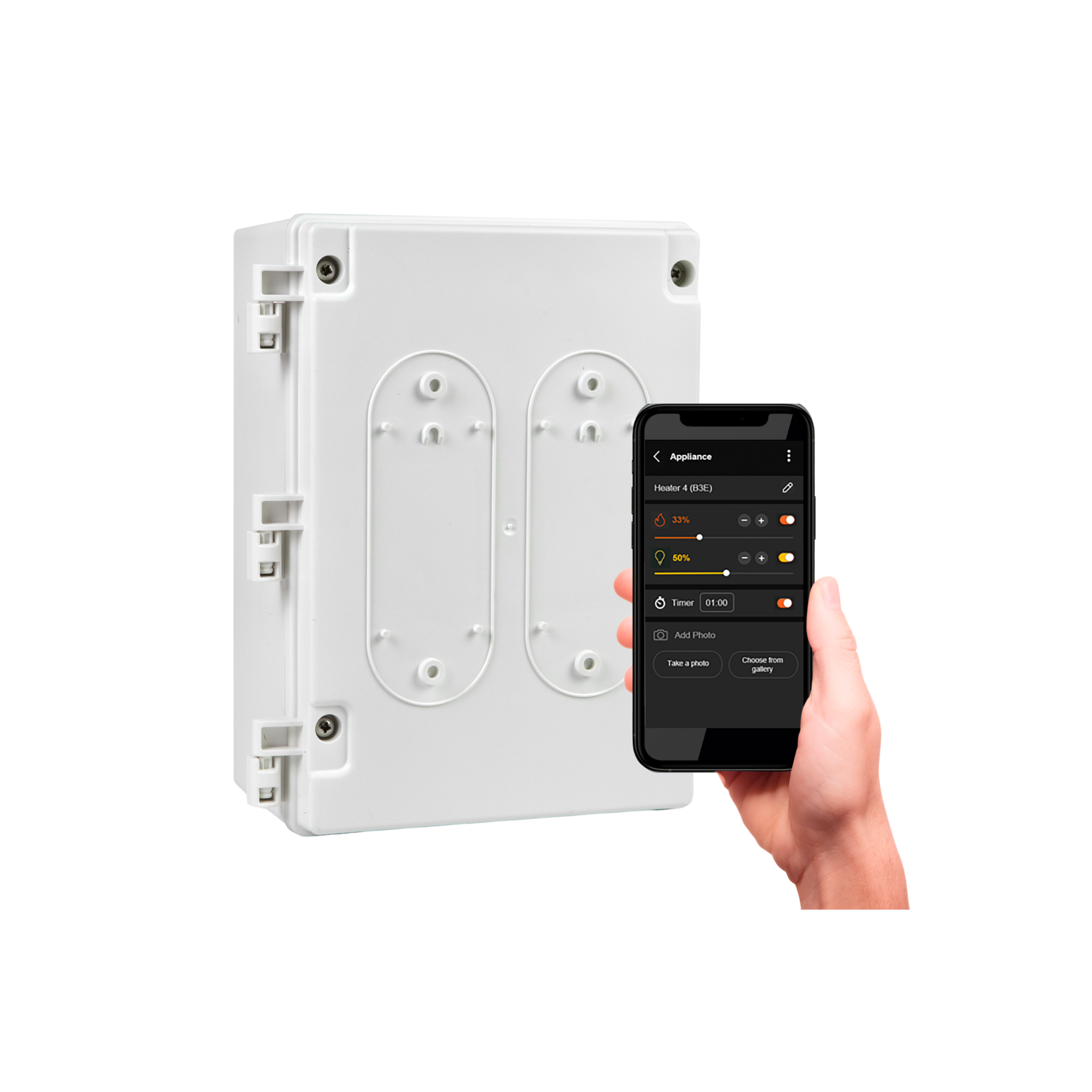

The Affinity Eclipse control units, compatible with our Eclipse heaters, allow for incremental adjustment of heat and light. They offer precise control and more settings than ever before to maximize the comfort of your Eclipse outdoor heater.
The new Affinity Eclipse series offers either 1- or 5-channel options, with each channel controlling the heat and light of an Eclipse electric heater. These features are already integrated into the Eclipse Portable model.

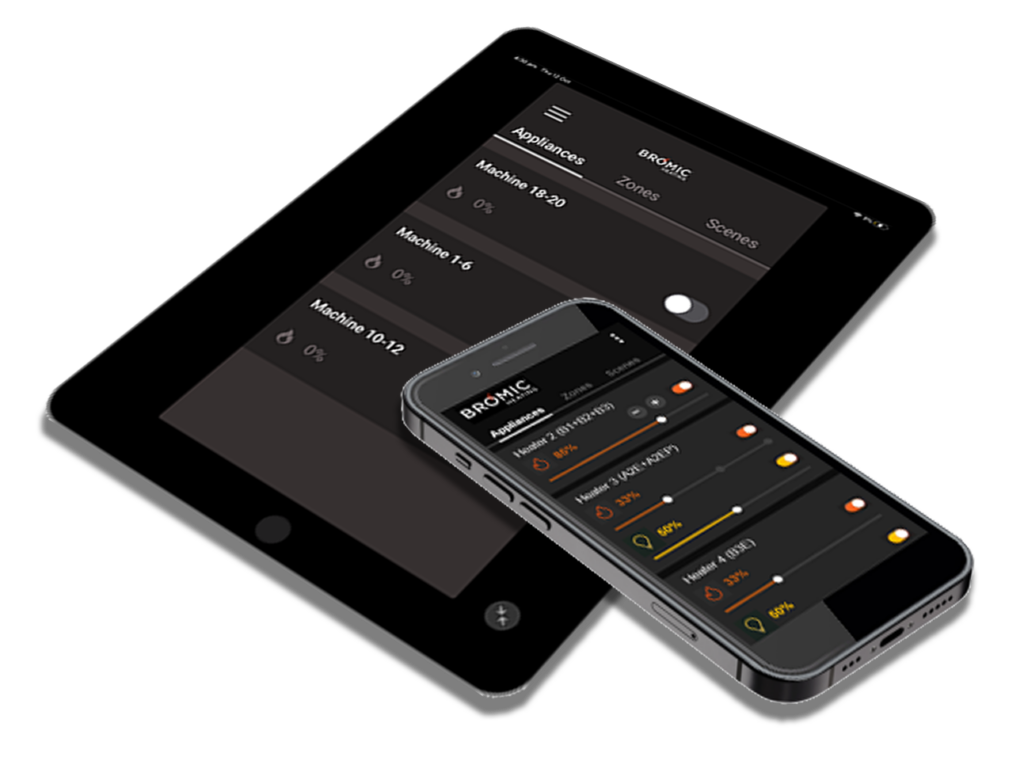

All Affinity Collection control units are equipped with Wi-Fi and Bluetooth, allowing them to receive commands via our Bromic Heating app—either from anywhere on your Wi-Fi network or via Bluetooth within a range of up to 30 feet.
801,00 € – 4.580,00 € inkl. MwSt
The Affinity Eclipse series, designed specifically for the Eclipse collection, is available with 1- and 5-channel inputs and is compatible with our permanently installed Eclipse Electro heater. The Eclipse Portable model, however, comes pre-equipped with the 1-channel dimmer control unit. With the Bromic Heating app, you enjoy complete, step-by-step control over heat and LED lighting to create the perfect ambiance for any occasion. With Wi-Fi (2.4 GHz compatible) or Bluetooth connectivity enabled, you can control and customize your comfort via the Bromic Heating app.
Get more out of your Bromic heaters than ever before. Our Affinity Smart-Heat™ control units easily connect to the new Bromic Heating app via Wi-Fi, Bluetooth, or an optional Ethernet connection, giving users complete, customizable control over their comfort.
| MODEL | Smart Heat Control Eclipse Pendant 1 CH | Smart Heat Control Eclipse Pendant 5 CH |
| ITEM NUMBER | BH8380051 | BH8380055 |
| NUMBER OF CHANNELS | 1 | 5 |
| VOLTAGE – MAXIMUM POWER PER CHANNEL | 220-240V – 4kW | 220-240V – 6kW |
| OPERATING TEMPERATURE RANGE | -20°C to +30°C | -20°C to +30°C |
| TEMPERATURE RANGE WHEN NON-OPERATION | -30°C to +70°C | -30°C to +70°C |
| PROTECTION CLASS | IP54 | IP54 |
| MASS | 290 x 202 x 112mm | 500 x 340 x 252mm |
| WEIGHT | 1.6 kg | 15 kg |
| Wi-Fi connectivity | 2.4 GHz | 2.4 GHz |
| GUARANTEE | 1 YEAR SPARE PARTS | |

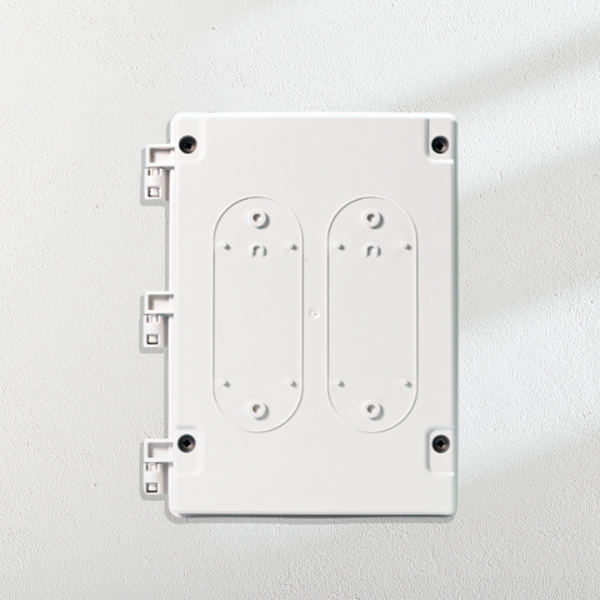

Dimensions Eclipse with 1 channel
Dimensions Eclipse with 5 channels
The Affinity Eclipse series can control both the heating and lighting functions of the Eclipse heaters.
The Affinity Eclipse series can control both the heating and lighting functions of the Eclipse heaters.
The Affinity Eclipse control unit is specifically designed to control an Eclipse heater.
The key is included with the control unit and is located in a plastic bag inside the packaging. It’s a reversible key that you can purchase at any standard electronics store.

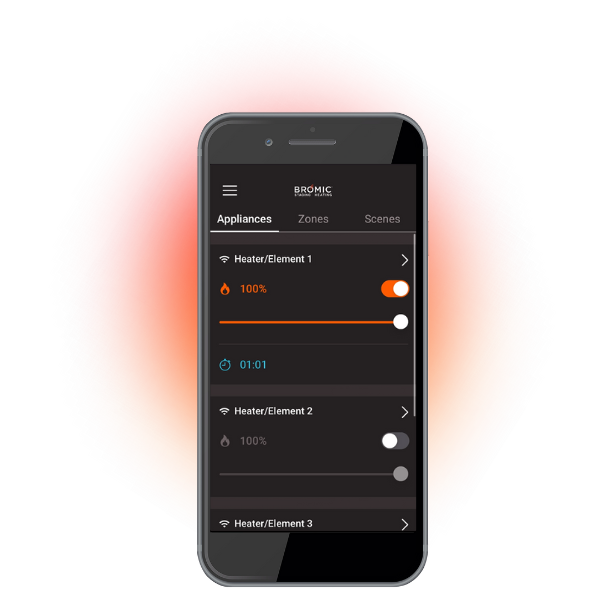

There are several ways to use this feature. Each time you turn on a heater, you can set a timer. This will automatically turn the device off after a specified time. To do this, select the device name in the app to access the detailed view and set the timer at the bottom of the screen.
Alternatively, you can create a schedule that automatically turns off the device at a specific time. However, this feature is only available for devices connected via Wi-Fi.
The serial number is a 14-digit code (e.g., CONF2C23080005) located on the control unit’s product label. The numbers vary depending on the device type. You can also find the serial number in the Bromic Heating app menu under „Site Configuration“ -> „Edit Site.“ All control units are listed there, and you can identify the connected heaters in the settings for each device.
If you need assistance with your new Affinity control units, please contact Bromic Technical Support .
